3A 金属外壳 - 防尘盖 - 带锁扣
| Type | Description | Connection mode | Match | Class of protection | 3Ddownload | 2Ddownload |
| H3A-MCV-1L/1M | 3A Metal housing - dust cover - with latch | Coil | male | IP65 |
|
|
| H3A-MCV-1L/1F | 3A Metal housing - dust cover - with latch | Coil | female | IP65 |
|
|
技术参数
| 3A 金属外壳 | |
| 材料： | 铸锌 Zinc Die-Cast |
| 颜色： | 灰色 Grey |
| 联锁元件 | |
| 联锁方式： | 金属弹性压合 Lever |
| 材料： | 金属(铁)镀锌 Metal Galvanized / Nickel Plating |
| 密封元件： | NBR |
| 适用温度范围： | -40℃ ~ +125℃ |
| 阻燃等级： | V0 |
| 防护等级(联锁状态,DIN EN 60 529)： | IP65 |
| Type | Description | Connection mode | Match | Class of protection | 3Ddownload | 2Ddownload |
| H3A-MCV-1L/1M | 3A Metal housing - dust cover - with latch | Coil | male | IP65 |
|
|
| H3A-MCV-1L/1F | 3A Metal housing - dust cover - with latch | Coil | female | IP65 |
|
|

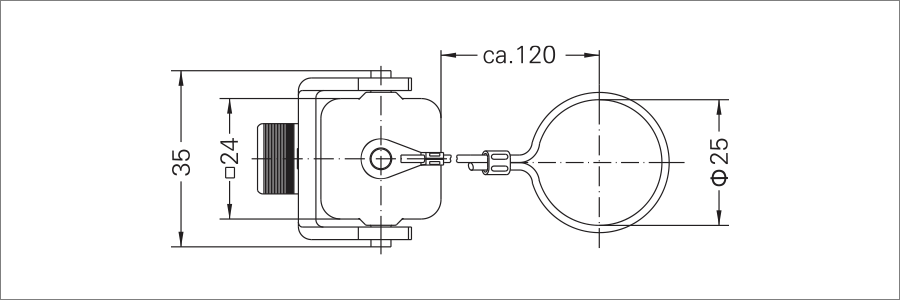

尺寸图
