普通塑料防水电缆接头 - CAP
| 螺纹尺寸 | 卡口范围(φ) | 螺纹外径(AG) | 扳手尺寸(SW) | 螺纹长度(GL) | 型号(灰色) | 型号(黑色) | 3D下载 | 2D下载 |
| PG制螺纹 | ||||||||
| PG7 | 3-6.5 | 12.5 | 15 | 8.5 | CAP-PG7G | CAP-PG7B |
|
|
| PG9 | 4-8 | 15.2 | 19 | 8 | CAP-PG9G | CAP-PG9B |
|
|
| PG11 | 5-10 | 18.6 | 22 | 8 | CAP-PG11G | CAP-PG11B |
|
|
| PG13.5 | 6-12 | 20.4 | 24 | 10 | CAP-PG13.5G | CAP-PG13.5B |
|
|
| PG16 | 8-14 | 22.5 | 27 | 10 | CAP-PG16G | CAP-PG16B |
|
|
| PG21 | 13-18 | 28.3 | 33 | 11 | CAP-PG21G | CAP-PG21B |
|
|
| PG29 | 18-25 | 37.0 | 42 | 11 | CAP-PG29G | CAP-PG29B |
|
|
| PG36 | 22-32 | 47.0 | 52 | 13 | CAP-PG36G | CAP-PG36B |
|
|
| PG42 | 31-38 | 54.0 | 60 | 15 | CAP-PG42G | CAP-PG42B |
|
|
| PG48 | 37-44 | 59.3 | 65 | 14 | CAP-PG48G | CAP-PG48B |
|
|
| M 公制螺纹 | ||||||||
| PG12x1.5 | 3-6.5 | 12 | 15 | 8 | CAP-M12G | CAP-M12B |
|
|
| PG16x1.5 | 4-8 | 16 | 19 | 8 | CAP-M16G | CAP-M16B |
|
|
| PG20x1.5 | 5-10 | 20 | 24 | 9 | CAP-M20G | CAP-M20B |
|
|
| PG20x1.5 | 6-12 | 20 | 24 | 9 | CAP-M20G(D6-12) | CAP-M20B(D6-12) |
|
|
| PG22x1.5 | 8-14 | 22 | 27 | 10 | CAP-M22G | CAP-M22B |
|
|
| PG25x1.5 | 13-18 | 25 | 33 | 11 | CAP-M25G | CAP-M25B |
|
|
| PG32x1.5 | 18-25 | 32 | 42 | 11 | CAP-M32G | CAP-M32B |
|
|
| PG40x1.5 | 22-32 | 40 | 51 | 13 | CAP-M40G | CAP-M40B |
|
|
| PG50x1.5 | 31-38 | 50 | 60 | 13 | CAP-M50G | CAP-M50B |
|
|
| PG63x1.5 | 37-44 | 63 | 65 | 14 | CAP-M63G | CAP-M63B |
|
|
单位:mm
技术参数
| 材料： | 黄铜镀镍 |
| 密封件： | 尼龙6和丁晴橡胶 |
| 防护等级： | IP68(要使用O型圈的情况下) |
| 温度范围(静态)： | -40℃ ~ +100℃ |
| 温度范围(动态)： | -20℃ ~ +80℃ |
| 螺纹尺寸 | 卡口范围(φ) | 螺纹外径(AG) | 扳手尺寸(SW) | 螺纹长度(GL) | 型号(灰色) | 型号(黑色) | 3D下载 | 2D下载 |
| PG制螺纹 | ||||||||
| PG7 | 3-6.5 | 12.5 | 15 | 8.5 | CAP-PG7G | CAP-PG7B |
|
|
| PG9 | 4-8 | 15.2 | 19 | 8 | CAP-PG9G | CAP-PG9B |
|
|
| PG11 | 5-10 | 18.6 | 22 | 8 | CAP-PG11G | CAP-PG11B |
|
|
| PG13.5 | 6-12 | 20.4 | 24 | 10 | CAP-PG13.5G | CAP-PG13.5B |
|
|
| PG16 | 8-14 | 22.5 | 27 | 10 | CAP-PG16G | CAP-PG16B |
|
|
| PG21 | 13-18 | 28.3 | 33 | 11 | CAP-PG21G | CAP-PG21B |
|
|
| PG29 | 18-25 | 37.0 | 42 | 11 | CAP-PG29G | CAP-PG29B |
|
|
| PG36 | 22-32 | 47.0 | 52 | 13 | CAP-PG36G | CAP-PG36B |
|
|
| PG42 | 31-38 | 54.0 | 60 | 15 | CAP-PG42G | CAP-PG42B |
|
|
| PG48 | 37-44 | 59.3 | 65 | 14 | CAP-PG48G | CAP-PG48B |
|
|
| M 公制螺纹 | ||||||||
| PG12x1.5 | 3-6.5 | 12 | 15 | 8 | CAP-M12G | CAP-M12B |
|
|
| PG16x1.5 | 4-8 | 16 | 19 | 8 | CAP-M16G | CAP-M16B |
|
|
| PG20x1.5 | 5-10 | 20 | 24 | 9 | CAP-M20G | CAP-M20B |
|
|
| PG20x1.5 | 6-12 | 20 | 24 | 9 | CAP-M20G(D6-12) | CAP-M20B(D6-12) |
|
|
| PG22x1.5 | 8-14 | 22 | 27 | 10 | CAP-M22G | CAP-M22B |
|
|
| PG25x1.5 | 13-18 | 25 | 33 | 11 | CAP-M25G | CAP-M25B |
|
|
| PG32x1.5 | 18-25 | 32 | 42 | 11 | CAP-M32G | CAP-M32B |
|
|
| PG40x1.5 | 22-32 | 40 | 51 | 13 | CAP-M40G | CAP-M40B |
|
|
| PG50x1.5 | 31-38 | 50 | 60 | 13 | CAP-M50G | CAP-M50B |
|
|
| PG63x1.5 | 37-44 | 63 | 65 | 14 | CAP-M63G | CAP-M63B |
|
|
单位:mm

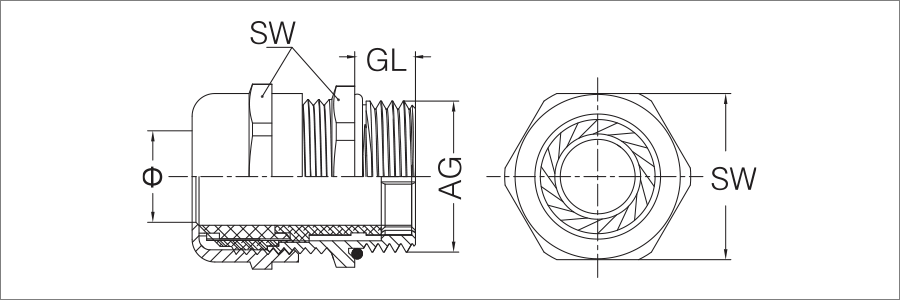

尺寸图
