多芯金属防水电缆接头 - CAM
| 螺纹尺寸 | 卡口范围(φ) | 螺纹外径(AG) | 扳手尺寸(SW) | 螺纹长度(GL) | 型号 | 3D下载 | 2D下载 |
| PG制螺纹 | |||||||
| PG9 | 2x3 | 15.2 | 17 | 6.7 | CAM-PG9/(2x3) |
|
|
| PG21 | 4x6 | 28.3 | 30 | 8 | CAM-PG21/(4x6) |
|
|
| PG21 | 3x7 | 28.3 | 30 | 8 | CAM-PG21/(3x7) |
|
|
| PG21 | 2x6 | 28.3 | 30 | 8 | CAM-PG21/(2x6) |
|
|
| PG21 | 2x7 | 28.3 | 30 | 8 | CAM-PG21/(2x7) |
|
|
| PG21 | 2x8 | 28.3 | 30 | 8 | CAM-PG21/(2x8) |
|
|
| PG29 | 4x9 | 37 | 40 | 9 | CAM-PG29/(4x9) |
|
|
| PG36 | 5x9 | 47 | 50 | 12 | CAM-PG36/(5x9) |
|
|
| M 公制螺纹 | |||||||
| PG16x1.5 | 2x3 | 16 | 17 | 6.5 | CAM-M16/(2x3) |
|
|
| PG20x1.5 | 6x3 | 20 | 22 | 8 | CAM-M20/(6x3) |
|
|
| PG20x1.5 | 2x5 | 20 | 22 | 8 | CAM-M20/(2x5) |
|
|
| PG25x1.5 | 2x7 | 25 | 30 | 7.5 | CAM-M25/(2x7) |
|
|
| PG25x1.5 | 4x6 | 25 | 30 | 7.5 | CAM-M25/(4x6) |
|
|
| PG25x1.5 | 3x7 | 25 | 30 | 7.5 | CAM-M25/(3x7) |
|
|
| PG25x1.5 | 2x8 | 33 | 30 | 7.5 | CAM-M25/(2x8) |
|
|
| PG32x1.5 | 4x9 | 32 | 40 | 8 | CAM-M32/(4x9) |
|
|
| PG40x1.5 | 5x9 | 40 | 50 | 12 | CAM-M40/(5x9) |
|
|
| PG40x1.5 | 2x15 | 40 | 50 | 12 | CAM-M40/(2x15) |
|
|
单位:mm
技术参数
| 材料： | 黄铜镀镍 |
| 密封件： | 尼龙66和丁晴橡胶 |
| 防护等级： | IP65 |
| 温度范围： | -40℃ ~ +100℃，短时间可以达到120℃ |
| 螺纹尺寸 | 卡口范围(φ) | 螺纹外径(AG) | 扳手尺寸(SW) | 螺纹长度(GL) | 型号 | 3D下载 | 2D下载 |
| PG制螺纹 | |||||||
| PG9 | 2x3 | 15.2 | 17 | 6.7 | CAM-PG9/(2x3) |
|
|
| PG21 | 4x6 | 28.3 | 30 | 8 | CAM-PG21/(4x6) |
|
|
| PG21 | 3x7 | 28.3 | 30 | 8 | CAM-PG21/(3x7) |
|
|
| PG21 | 2x6 | 28.3 | 30 | 8 | CAM-PG21/(2x6) |
|
|
| PG21 | 2x7 | 28.3 | 30 | 8 | CAM-PG21/(2x7) |
|
|
| PG21 | 2x8 | 28.3 | 30 | 8 | CAM-PG21/(2x8) |
|
|
| PG29 | 4x9 | 37 | 40 | 9 | CAM-PG29/(4x9) |
|
|
| PG36 | 5x9 | 47 | 50 | 12 | CAM-PG36/(5x9) |
|
|
| M 公制螺纹 | |||||||
| PG16x1.5 | 2x3 | 16 | 17 | 6.5 | CAM-M16/(2x3) |
|
|
| PG20x1.5 | 6x3 | 20 | 22 | 8 | CAM-M20/(6x3) |
|
|
| PG20x1.5 | 2x5 | 20 | 22 | 8 | CAM-M20/(2x5) |
|
|
| PG25x1.5 | 2x7 | 25 | 30 | 7.5 | CAM-M25/(2x7) |
|
|
| PG25x1.5 | 4x6 | 25 | 30 | 7.5 | CAM-M25/(4x6) |
|
|
| PG25x1.5 | 3x7 | 25 | 30 | 7.5 | CAM-M25/(3x7) |
|
|
| PG25x1.5 | 2x8 | 33 | 30 | 7.5 | CAM-M25/(2x8) |
|
|
| PG32x1.5 | 4x9 | 32 | 40 | 8 | CAM-M32/(4x9) |
|
|
| PG40x1.5 | 5x9 | 40 | 50 | 12 | CAM-M40/(5x9) |
|
|
| PG40x1.5 | 2x15 | 40 | 50 | 12 | CAM-M40/(2x15) |
|
|
单位:mm

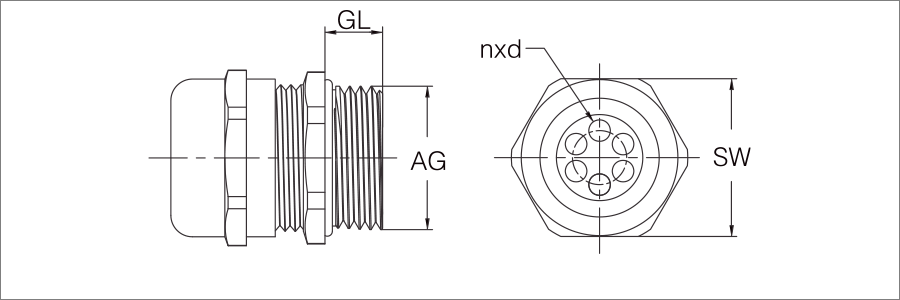

尺寸图
