尼龙螺母 - CAP
| 螺纹尺寸 | 扳手尺寸(SW) | 厚度(H) | 型号(灰色) | 型号(黑色) | 3D下载 | 2D下载 |
| PG制螺纹 | ||||||
| PG7 | 19 | 5.0 | CAP-PG7G/S | CAP-PG7B/S |
|
|
| PG9 | 22 | 5.0 | CAP-PG9G/S | CAP-PG9B/S |
|
|
| PG11 | 24 | 5.0 | CAP-PG11G/S | CAP-PG11B/S |
|
|
| PG13.5 | 27 | 6.0 | CAP-PG13.5G/S | CAP-PG13.5B/S |
|
|
| PG16 | 30 | 6.0 | CAP-PG16G/S | CAP-PG16B/S |
|
|
| PG21 | 36 | 7.0 | CAP-PG21G/S | CAP-PG21B/S |
|
|
| PG29 | 45 | 7.0 | CAP-PG29G/S | CAP-PG29B/S |
|
|
| PG36 | 59 | 8.0 | CAP-PG36G/S | CAP-PG36B/S |
|
|
| PG42 | 65 | 8.0 | CAP-PG42G/S | CAP-PG42B/S |
|
|
| PG48 | 70 | 8.0 | CAP-PG48G/S | CAP-PG48B/S |
|
|
| M 公制螺纹 | ||||||
| PG12x1.5 | 19 | 5.0 | CAP-M12G/S | CAP-M12B/S |
|
|
| PG16x1.5 | 22 | 5.0 | CAP-M16G/S | CAP-M16B/S |
|
|
| PG18x1.5 | 24 | 5.0 | CAP-M18G/S | CAP-M18B/S |
|
|
| PG20x1.5 | 27 | 6.0 | CAP-M20G/S | CAP-M20B/S |
|
|
| PG22x1.5 | 30 | 6.0 | CAP-M22G/S | CAP-M22B/S |
|
|
| PG24x1.5 | 30 | 6.0 | CAP-M24G/S | CAP-M24B/S |
|
|
| PG25x1.5 | 32 | 7.0 | CAP-M25G/S | CAP-M25B/S |
|
|
| PG32x1.5 | 40 | 7.0 | CAP-M32G/S | CAP-M32B/S |
|
|
| PG40x1.5 | 49 | 8.0 | CAP-M40G/S | CAP-M40B/S |
|
|
| PG50x1.5 | 65 | 8.0 | CAP-M50G/S | CAP-M50B/S |
|
|
| PG63x1.5 | 74 | 8.0 | CAP-M63G/S | CAP-M63B/S |
|
|
单位:mm
技术参数
| 材料： | 尼龙66 |
| 颜色： | 灰色、黑色 |
| 温度范围： | -40℃ ~ +100℃ |
| 螺纹尺寸 | 扳手尺寸(SW) | 厚度(H) | 型号(灰色) | 型号(黑色) | 3D下载 | 2D下载 |
| PG制螺纹 | ||||||
| PG7 | 19 | 5.0 | CAP-PG7G/S | CAP-PG7B/S |
|
|
| PG9 | 22 | 5.0 | CAP-PG9G/S | CAP-PG9B/S |
|
|
| PG11 | 24 | 5.0 | CAP-PG11G/S | CAP-PG11B/S |
|
|
| PG13.5 | 27 | 6.0 | CAP-PG13.5G/S | CAP-PG13.5B/S |
|
|
| PG16 | 30 | 6.0 | CAP-PG16G/S | CAP-PG16B/S |
|
|
| PG21 | 36 | 7.0 | CAP-PG21G/S | CAP-PG21B/S |
|
|
| PG29 | 45 | 7.0 | CAP-PG29G/S | CAP-PG29B/S |
|
|
| PG36 | 59 | 8.0 | CAP-PG36G/S | CAP-PG36B/S |
|
|
| PG42 | 65 | 8.0 | CAP-PG42G/S | CAP-PG42B/S |
|
|
| PG48 | 70 | 8.0 | CAP-PG48G/S | CAP-PG48B/S |
|
|
| M 公制螺纹 | ||||||
| PG12x1.5 | 19 | 5.0 | CAP-M12G/S | CAP-M12B/S |
|
|
| PG16x1.5 | 22 | 5.0 | CAP-M16G/S | CAP-M16B/S |
|
|
| PG18x1.5 | 24 | 5.0 | CAP-M18G/S | CAP-M18B/S |
|
|
| PG20x1.5 | 27 | 6.0 | CAP-M20G/S | CAP-M20B/S |
|
|
| PG22x1.5 | 30 | 6.0 | CAP-M22G/S | CAP-M22B/S |
|
|
| PG24x1.5 | 30 | 6.0 | CAP-M24G/S | CAP-M24B/S |
|
|
| PG25x1.5 | 32 | 7.0 | CAP-M25G/S | CAP-M25B/S |
|
|
| PG32x1.5 | 40 | 7.0 | CAP-M32G/S | CAP-M32B/S |
|
|
| PG40x1.5 | 49 | 8.0 | CAP-M40G/S | CAP-M40B/S |
|
|
| PG50x1.5 | 65 | 8.0 | CAP-M50G/S | CAP-M50B/S |
|
|
| PG63x1.5 | 74 | 8.0 | CAP-M63G/S | CAP-M63B/S |
|
|
单位:mm

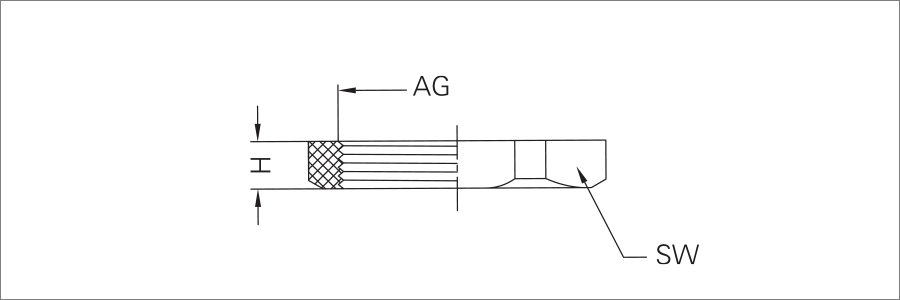

尺寸图
