金属盖 - CNP
| 螺纹尺寸 | 螺纹长度(GL) | 高度(H) | 螺纹外径(AG) | 扳手尺寸(SW) | 型号(黑色) | 3D下载 | 2D下载 |
| PG制螺纹 | |||||||
| PG7 | 5 | 8 | 12.5 | 14 | CNP-PG7 |
|
|
| PG9 | 6 | 9 | 15.2 | 18 | CNP-PG9 |
|
|
| PG11 | 6 | 10 | 18.6 | 20 | CNP-PG11 |
|
|
| PG13.5 | 7 | 10 | 20.4 | 22 | CNP-PG13.5 |
|
|
| PG16 | 7 | 10 | 22.5 | 24 | CNP-PG16 |
|
|
| PG21 | 7 | 11 | 28.3 | 30 | CNP-PG21 |
|
|
| PG29 | 8 | 13 | 37.0 | 40 | CNP-PG29 |
|
|
| PG36 | 8 | 13 | 47.0 | 50 | CNP-PG36 |
|
|
| PG42 | 9 | 15 | 54.0 | 55 | CNP-PG42 |
|
|
| PG48 | 10 | 17 | 59.3 | 65 | CNP-PG48 |
|
|
| M 公制螺纹 | |||||||
| PG12x1.5 | 5 | 8 | 12 | 14 | CNP-M12 |
|
|
| PG16x1.5 | 6 | 9 | 16 | 18 | CNP-M16 |
|
|
| PG18x1.5 | 6 | 10 | 18 | 20 | CNP-M18 |
|
|
| PG20x1.5 | 6 | 9.5 | 20 | 22 | CNP-M20 |
|
|
| PG22x1.5 | 7 | 10 | 22 | 24 | CNP-M22 |
|
|
| PG24x1.5 | 7 | 11 | 24 | 27 | CNP-M24 |
|
|
| PG25x1.5 | 7 | 11 | 25 | 27 | CNP-M25 |
|
|
| PG32x1.5 | 7 | 11 | 32 | 35 | CNP-M32 |
|
|
| PG36x1.5 | 8 | 12 | 36 | 40 | CNP-M36 |
|
|
| PG40x1.5 | 8 | 13 | 40 | 45 | CNP-M40 |
|
|
| PG48x1.5 | 9 | 15 | 48 | 50 | CNP-M48 |
|
|
| PG50x1.5 | 9 | 13 | 50 | 55 | CNP-M50 |
|
|
| PG63x1.5 | 10 | 17 | 63 | 70 | CNP-M63 |
|
|
单位:mm
技术参数
| 材料： | 黄铜镀镍 |
| 温度范围： | -40℃ ~ +120℃ |
| 防护等级： | IP68(要使用O型圈的情况下) |
| 螺纹尺寸 | 螺纹长度(GL) | 高度(H) | 螺纹外径(AG) | 扳手尺寸(SW) | 型号(黑色) | 3D下载 | 2D下载 |
| PG制螺纹 | |||||||
| PG7 | 5 | 8 | 12.5 | 14 | CNP-PG7 |
|
|
| PG9 | 6 | 9 | 15.2 | 18 | CNP-PG9 |
|
|
| PG11 | 6 | 10 | 18.6 | 20 | CNP-PG11 |
|
|
| PG13.5 | 7 | 10 | 20.4 | 22 | CNP-PG13.5 |
|
|
| PG16 | 7 | 10 | 22.5 | 24 | CNP-PG16 |
|
|
| PG21 | 7 | 11 | 28.3 | 30 | CNP-PG21 |
|
|
| PG29 | 8 | 13 | 37.0 | 40 | CNP-PG29 |
|
|
| PG36 | 8 | 13 | 47.0 | 50 | CNP-PG36 |
|
|
| PG42 | 9 | 15 | 54.0 | 55 | CNP-PG42 |
|
|
| PG48 | 10 | 17 | 59.3 | 65 | CNP-PG48 |
|
|
| M 公制螺纹 | |||||||
| PG12x1.5 | 5 | 8 | 12 | 14 | CNP-M12 |
|
|
| PG16x1.5 | 6 | 9 | 16 | 18 | CNP-M16 |
|
|
| PG18x1.5 | 6 | 10 | 18 | 20 | CNP-M18 |
|
|
| PG20x1.5 | 6 | 9.5 | 20 | 22 | CNP-M20 |
|
|
| PG22x1.5 | 7 | 10 | 22 | 24 | CNP-M22 |
|
|
| PG24x1.5 | 7 | 11 | 24 | 27 | CNP-M24 |
|
|
| PG25x1.5 | 7 | 11 | 25 | 27 | CNP-M25 |
|
|
| PG32x1.5 | 7 | 11 | 32 | 35 | CNP-M32 |
|
|
| PG36x1.5 | 8 | 12 | 36 | 40 | CNP-M36 |
|
|
| PG40x1.5 | 8 | 13 | 40 | 45 | CNP-M40 |
|
|
| PG48x1.5 | 9 | 15 | 48 | 50 | CNP-M48 |
|
|
| PG50x1.5 | 9 | 13 | 50 | 55 | CNP-M50 |
|
|
| PG63x1.5 | 10 | 17 | 63 | 70 | CNP-M63 |
|
|
单位:mm

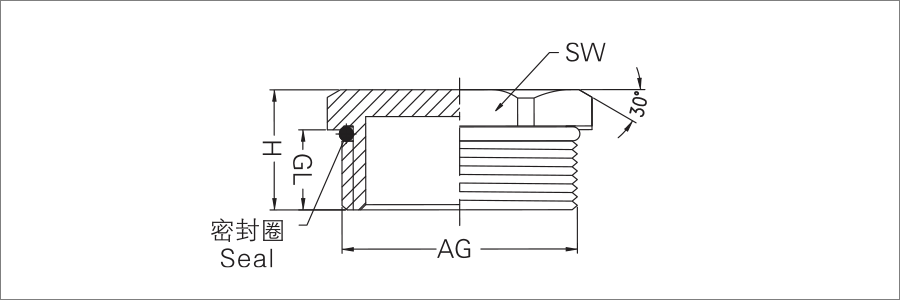

尺寸图
