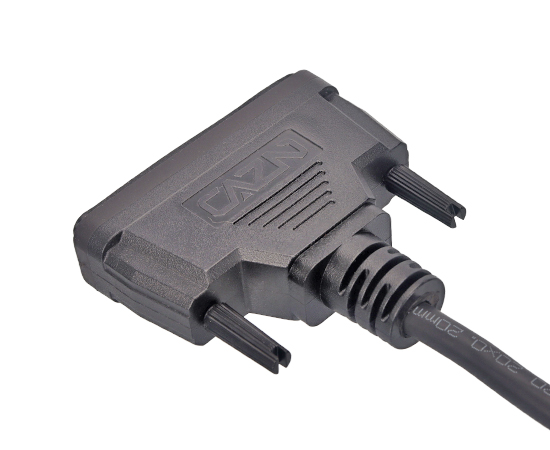

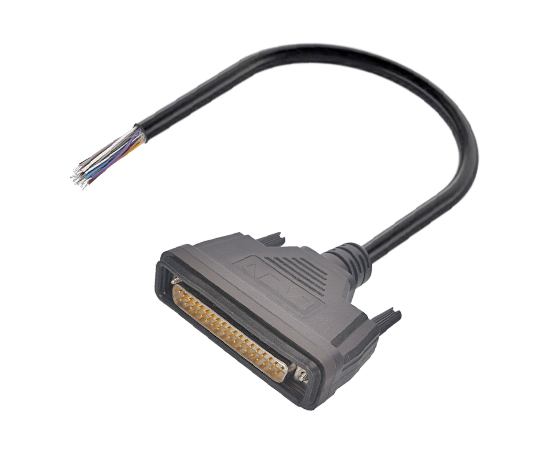

EDB4-直式针型成型插头
| 产品名称 | 芯数 | 最大针线规 | 额定电流 | 产品型号-带屏蔽 | 产品型号-非屏蔽 | 3D下载 | 2D下载 |
| EDB4直式针型成型插头-xx米-PVC线材 | 37 | 20 AWG | 5A | EDB4-M37-MWA-xPV-S | EDB4-M37-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 62H | 20 AWG | 5A | EDB4-M62H-MWA-xPV-S | EDB4-M62H-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 8W8 | 20 AWG | 5A | EDB4-M8W8-MWA-xPV-S | EDB4-M8W8-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 13W6 | 20 AWG | 5A | EDB4-M13W6-MWA-xPV-S | EDB4-M13W6-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 21W4 | 20 AWG | 5A | EDB4-M21W4-MWA-xPV-S | EDB4-M21W4-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 25W3 | 20 AWG | 5A | EDB4-M25W3-MWA-xPV-S | EDB4-M25W3-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 27W2 | 20 AWG | 5A | EDB4-M27W2-MWA-xPV-S | EDB4-M27W2-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 8W8 | 14 AWG | 10A | EDB4-M8W8-MWA14-xPV-S | EDB4-M8W8-MWA14-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 13W6 | 14 AWG | 5A/10A | EDB4-M13W6-MWA14-xPV-S | EDB4-M13W6-MWA14-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 21W4 | 14 AWG | 5A/10A | EDB4-M21W4-MWA14-xPV-S | EDB4-M21W4-MWA14-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 25W3 | 14 AWG | 5A/10A | EDB4-M25W3-MWA14-xPV-S | EDB4-M25W3-MWA14-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 27W2 | 14 AWG | 5A/10A | EDB4-M27W2-MWA14-xPV-S | EDB4-M27W2-MWA14-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 8W8 | 10 AWG | 20A | EDB4-M8W8-MWA10-xPV-S | EDB4-M8W8-MWA10-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 13W6 | 10 AWG | 5A/20A | EDB4-M13W6-MWA10-xPV-S | EDB4-M13W6-MWA10-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 21W4 | 10 AWG | 5A/20A | EDB4-M21W4-MWA10-xPV-S | EDB4-M21W4-MWA10-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 25W3 | 10 AWG | 5A/20A | EDB4-M25W3-MWA10-xPV-S | EDB4-M25W3-MWA10-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 27W2 | 10 AWG | 5A/20A | EDB4-M27W2-MWA10-xPV-S | EDB4-M27W2-MWA10-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 8W8 | 8 AWG | 30A | EDB4-M8W8-MWA08-xPV-S | EDB4-M8W8-MWA08-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 13W6 | 8 AWG | 5A/30A | EDB4-M13W6-MWA08-xPV-S | EDB4-M13W6-MWA08-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 21W4 | 8 AWG | 5A/30A | EDB4-M21W4-MWA08-xPV-S | EDB4-M21W4-MWA08-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 25W3 | 8 AWG | 5A/30A | EDB4-M25W3-MWA08-xPV-S | EDB4-M25W3-MWA08-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 27W2 | 8 AWG | 5A/30A | EDB4-M27W2-MWA08-xPV-S | EDB4-M27W2-MWA08-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 8W8 | 6 AWG | 40A | EDB4-M8W8-MWA06-xPV-S | EDB4-M8W8-MWA06-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 13W6 | 6 AWG | 5A/40A | EDB4-M13W6-MWA06-xPV-S | EDB4-M13W6-MWA06-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 21W4 | 6 AWG | 5A/40A | EDB4-M21W4-MWA06-xPV-S | EDB4-M21W4-MWA06-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 25W3 | 6 AWG | 5A/40A | EDB4-M25W3-MWA06-xPV-S | EDB4-M25W3-MWA06-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 27W2 | 6 AWG | 5A/40A | EDB4-M27W2-MWA06-xPV-S | EDB4-M27W2-MWA06-xPV |
*如需要选择其他线材，请咨询客服。
产品参数
| 额定电流： | 10A/20A/30A/40A |
| 额定电压： | 1000 V |
| 耐电压： | 500 V |
| 绝缘阻抗： | 5000 MΩ |
| 接触阻抗： | 10 mΩ |
| 插拔力： | 符合IEC60807-3 |
| 接线范围： | 8mm~14mm |
| 插拔次数： | ≥500次 |
| 适用温度： | -55℃ ~ +105℃ |
| 外壳材料： | 热塑性塑料PA66 阻燃等级：V-0 |
| 防护等级： | IP67 |
| 产品符合： | CECC 7501-802.IEC 60807-3 |
电气参数
| 产品名称 | 芯数 | 最大针线规 | 额定电流 | 产品型号-带屏蔽 | 产品型号-非屏蔽 | 3D下载 | 2D下载 |
| EDB4直式针型成型插头-xx米-PVC线材 | 37 | 20 AWG | 5A | EDB4-M37-MWA-xPV-S | EDB4-M37-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 62H | 20 AWG | 5A | EDB4-M62H-MWA-xPV-S | EDB4-M62H-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 8W8 | 20 AWG | 5A | EDB4-M8W8-MWA-xPV-S | EDB4-M8W8-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 13W6 | 20 AWG | 5A | EDB4-M13W6-MWA-xPV-S | EDB4-M13W6-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 21W4 | 20 AWG | 5A | EDB4-M21W4-MWA-xPV-S | EDB4-M21W4-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 25W3 | 20 AWG | 5A | EDB4-M25W3-MWA-xPV-S | EDB4-M25W3-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 27W2 | 20 AWG | 5A | EDB4-M27W2-MWA-xPV-S | EDB4-M27W2-MWA-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 8W8 | 14 AWG | 10A | EDB4-M8W8-MWA14-xPV-S | EDB4-M8W8-MWA14-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 13W6 | 14 AWG | 5A/10A | EDB4-M13W6-MWA14-xPV-S | EDB4-M13W6-MWA14-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 21W4 | 14 AWG | 5A/10A | EDB4-M21W4-MWA14-xPV-S | EDB4-M21W4-MWA14-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 25W3 | 14 AWG | 5A/10A | EDB4-M25W3-MWA14-xPV-S | EDB4-M25W3-MWA14-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 27W2 | 14 AWG | 5A/10A | EDB4-M27W2-MWA14-xPV-S | EDB4-M27W2-MWA14-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 8W8 | 10 AWG | 20A | EDB4-M8W8-MWA10-xPV-S | EDB4-M8W8-MWA10-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 13W6 | 10 AWG | 5A/20A | EDB4-M13W6-MWA10-xPV-S | EDB4-M13W6-MWA10-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 21W4 | 10 AWG | 5A/20A | EDB4-M21W4-MWA10-xPV-S | EDB4-M21W4-MWA10-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 25W3 | 10 AWG | 5A/20A | EDB4-M25W3-MWA10-xPV-S | EDB4-M25W3-MWA10-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 27W2 | 10 AWG | 5A/20A | EDB4-M27W2-MWA10-xPV-S | EDB4-M27W2-MWA10-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 8W8 | 8 AWG | 30A | EDB4-M8W8-MWA08-xPV-S | EDB4-M8W8-MWA08-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 13W6 | 8 AWG | 5A/30A | EDB4-M13W6-MWA08-xPV-S | EDB4-M13W6-MWA08-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 21W4 | 8 AWG | 5A/30A | EDB4-M21W4-MWA08-xPV-S | EDB4-M21W4-MWA08-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 25W3 | 8 AWG | 5A/30A | EDB4-M25W3-MWA08-xPV-S | EDB4-M25W3-MWA08-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 27W2 | 8 AWG | 5A/30A | EDB4-M27W2-MWA08-xPV-S | EDB4-M27W2-MWA08-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 8W8 | 6 AWG | 40A | EDB4-M8W8-MWA06-xPV-S | EDB4-M8W8-MWA06-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 13W6 | 6 AWG | 5A/40A | EDB4-M13W6-MWA06-xPV-S | EDB4-M13W6-MWA06-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 21W4 | 6 AWG | 5A/40A | EDB4-M21W4-MWA06-xPV-S | EDB4-M21W4-MWA06-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 25W3 | 6 AWG | 5A/40A | EDB4-M25W3-MWA06-xPV-S | EDB4-M25W3-MWA06-xPV | ||
| EDB4直式针型成型插头-xx米-PVC线材 | 27W2 | 6 AWG | 5A/40A | EDB4-M27W2-MWA06-xPV-S | EDB4-M27W2-MWA06-xPV |
*如需要选择其他线材，请咨询客服。

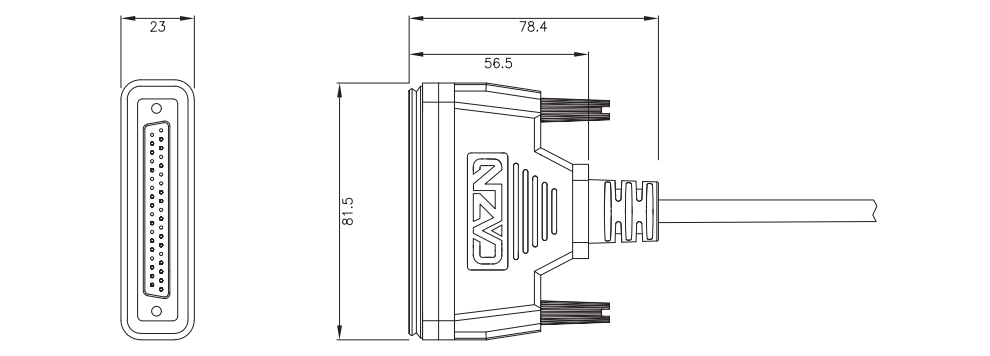

尺寸图
