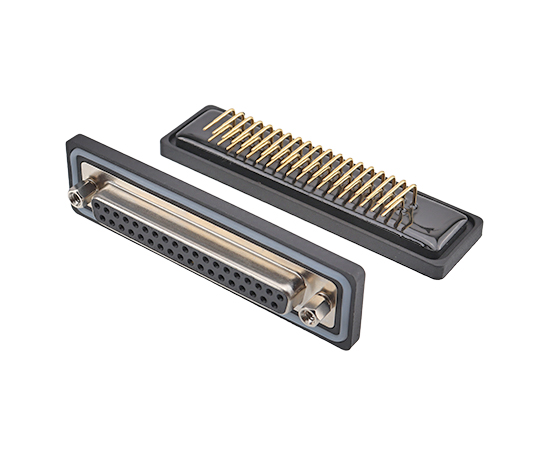

EDB4-弯式孔型插座(焊板式)
| 产品名称 | 芯数 | 最大针线规 | 额定电流 | 产品型号 | 3D下载 | 2D下载 |
| EDB4弯式孔型插座(焊板式) | 37 | 20 AWG | 5A | EDB4-F37-PPL | ↓ | |
| EDB4弯式孔型插座(焊板式) | 62H | 20 AWG | 5A | EDB4-F62H-PPL | ||
| EDB4弯式孔型插座(焊板式) | 8W8 | 20 AWG | 5A | EDB4-F8W8-PPL | ||
| EDB4弯式孔型插座(焊板式) | 13W6 | 20 AWG | 5A | EDB4-F13W6-PPL | ||
| EDB4弯式孔型插座(焊板式) | 21W4 | 20 AWG | 5A | EDB4-F21W4-PPL | ||
| EDB4弯式孔型插座(焊板式) | 25W3 | 20 AWG | 5A | EDB4-F25W3-PPL | ||
| EDB4弯式孔型插座(焊板式) | 27W2 | 20 AWG | 5A | EDB4-F27W2-PPL | ||
| EDB4弯式孔型插座(焊板式) | 8W8 | 14 AWG | 10A | EDB4-F8W8-PPL14 | ||
| EDB4弯式孔型插座(焊板式) | 13W6 | 14 AWG | 5A/10A | EDB4-F13W6-PPL14 | ||
| EDB4弯式孔型插座(焊板式) | 21W4 | 14 AWG | 5A/10A | EDB4-F21W4-PPL14 | ||
| EDB4弯式孔型插座(焊板式) | 25W3 | 14 AWG | 5A/10A | EDB4-F25W3-PPL14 | ||
| EDB4弯式孔型插座(焊板式) | 27W2 | 14 AWG | 5A/10A | EDB4-F27W2-PPL14 | ||
| EDB4弯式孔型插座(焊板式) | 8W8 | 10 AWG | 20A | EDB4-F8W8-PPL10 | ||
| EDB4弯式孔型插座(焊板式) | 13W6 | 10 AWG | 5A/20A | EDB4-F13W6-PPL10 | ||
| EDB4弯式孔型插座(焊板式) | 21W4 | 10 AWG | 5A/20A | EDB4-F21W4-PPL10 | ||
| EDB4弯式孔型插座(焊板式) | 25W3 | 10 AWG | 5A/20A | EDB4-F25W3-PPL10 | ||
| EDB4弯式孔型插座(焊板式) | 27W2 | 10 AWG | 5A/20A | EDB4-F27W2-PPL10 | ||
| EDB4弯式孔型插座(焊板式) | 8W8 | 8 AWG | 30A | EDB4-F8W8-PPL08 | ||
| EDB4弯式孔型插座(焊板式) | 13W6 | 8 AWG | 5A/30A | EDB4-F13W6-PPL08 | ||
| EDB4弯式孔型插座(焊板式) | 21W4 | 8 AWG | 5A/30A | EDB4-F21W4-PPL08 | ||
| EDB4弯式孔型插座(焊板式) | 25W3 | 8 AWG | 5A/30A | EDB4-F25W3-PPL08 | ||
| EDB4弯式孔型插座(焊板式) | 27W2 | 8 AWG | 5A/30A | EDB4-F27W2-PPL08 | ||
| EDB4弯式孔型插座(焊板式) | 8W8 | 6 AWG | 40A | EDB4-F8W8-PPL06 | ||
| EDB4弯式孔型插座(焊板式) | 13W6 | 6 AWG | 5A/40A | EDB4-F13W6-PPL06 | ||
| EDB4弯式孔型插座(焊板式) | 21W4 | 6 AWG | 5A/40A | EDB4-F21W4-PPL06 | ||
| EDB4弯式孔型插座(焊板式) | 25W3 | 6 AWG | 5A/40A | EDB4-F25W3-PPL06 | ||
| EDB4弯式孔型插座(焊板式) | 27W2 | 6 AWG | 5A/40A | EDB4-F27W2-PPL06 |
产品参数
| 额定电流： | 10A/20A/30A/40A |
| 额定电压： | 1000 V |
| 耐电压： | 500 V |
| 绝缘阻抗： | 5000 MΩ |
| 接触阻抗： | 10 mΩ |
| 插拔力： | 符合IEC60807-3 |
| 接线范围： | 8mm~14mm |
| 插拔次数： | ≥500次 |
| 适用温度： | -55℃ ~ +105℃ |
| 外壳材料： | 热塑性塑料PA66 阻燃等级：V-0 |
| 防护等级： | IP65/ IP67 |
| 产品符合： | CECC 7501-802.IEC 60807-3 |
电气参数
| 产品名称 | 芯数 | 最大针线规 | 额定电流 | 产品型号 | 3D下载 | 2D下载 |
| EDB4弯式孔型插座(焊板式) | 37 | 20 AWG | 5A | EDB4-F37-PPL | ↓ | |
| EDB4弯式孔型插座(焊板式) | 62H | 20 AWG | 5A | EDB4-F62H-PPL | ||
| EDB4弯式孔型插座(焊板式) | 8W8 | 20 AWG | 5A | EDB4-F8W8-PPL | ||
| EDB4弯式孔型插座(焊板式) | 13W6 | 20 AWG | 5A | EDB4-F13W6-PPL | ||
| EDB4弯式孔型插座(焊板式) | 21W4 | 20 AWG | 5A | EDB4-F21W4-PPL | ||
| EDB4弯式孔型插座(焊板式) | 25W3 | 20 AWG | 5A | EDB4-F25W3-PPL | ||
| EDB4弯式孔型插座(焊板式) | 27W2 | 20 AWG | 5A | EDB4-F27W2-PPL | ||
| EDB4弯式孔型插座(焊板式) | 8W8 | 14 AWG | 10A | EDB4-F8W8-PPL14 | ||
| EDB4弯式孔型插座(焊板式) | 13W6 | 14 AWG | 5A/10A | EDB4-F13W6-PPL14 | ||
| EDB4弯式孔型插座(焊板式) | 21W4 | 14 AWG | 5A/10A | EDB4-F21W4-PPL14 | ||
| EDB4弯式孔型插座(焊板式) | 25W3 | 14 AWG | 5A/10A | EDB4-F25W3-PPL14 | ||
| EDB4弯式孔型插座(焊板式) | 27W2 | 14 AWG | 5A/10A | EDB4-F27W2-PPL14 | ||
| EDB4弯式孔型插座(焊板式) | 8W8 | 10 AWG | 20A | EDB4-F8W8-PPL10 | ||
| EDB4弯式孔型插座(焊板式) | 13W6 | 10 AWG | 5A/20A | EDB4-F13W6-PPL10 | ||
| EDB4弯式孔型插座(焊板式) | 21W4 | 10 AWG | 5A/20A | EDB4-F21W4-PPL10 | ||
| EDB4弯式孔型插座(焊板式) | 25W3 | 10 AWG | 5A/20A | EDB4-F25W3-PPL10 | ||
| EDB4弯式孔型插座(焊板式) | 27W2 | 10 AWG | 5A/20A | EDB4-F27W2-PPL10 | ||
| EDB4弯式孔型插座(焊板式) | 8W8 | 8 AWG | 30A | EDB4-F8W8-PPL08 | ||
| EDB4弯式孔型插座(焊板式) | 13W6 | 8 AWG | 5A/30A | EDB4-F13W6-PPL08 | ||
| EDB4弯式孔型插座(焊板式) | 21W4 | 8 AWG | 5A/30A | EDB4-F21W4-PPL08 | ||
| EDB4弯式孔型插座(焊板式) | 25W3 | 8 AWG | 5A/30A | EDB4-F25W3-PPL08 | ||
| EDB4弯式孔型插座(焊板式) | 27W2 | 8 AWG | 5A/30A | EDB4-F27W2-PPL08 | ||
| EDB4弯式孔型插座(焊板式) | 8W8 | 6 AWG | 40A | EDB4-F8W8-PPL06 | ||
| EDB4弯式孔型插座(焊板式) | 13W6 | 6 AWG | 5A/40A | EDB4-F13W6-PPL06 | ||
| EDB4弯式孔型插座(焊板式) | 21W4 | 6 AWG | 5A/40A | EDB4-F21W4-PPL06 | ||
| EDB4弯式孔型插座(焊板式) | 25W3 | 6 AWG | 5A/40A | EDB4-F25W3-PPL06 | ||
| EDB4弯式孔型插座(焊板式) | 27W2 | 6 AWG | 5A/40A | EDB4-F27W2-PPL06 |

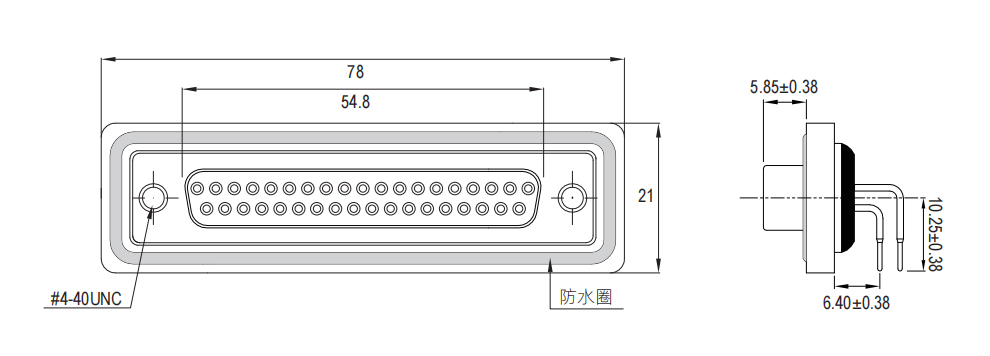

尺寸图
