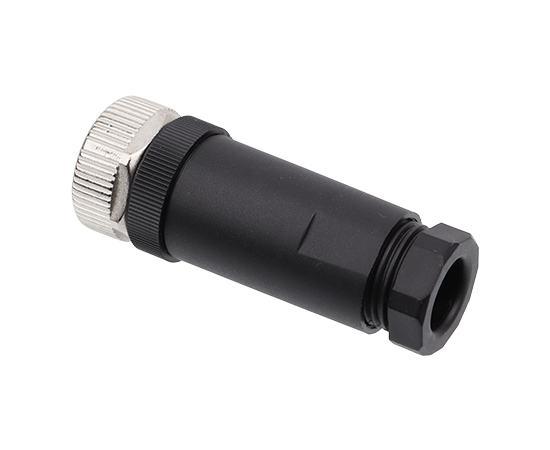

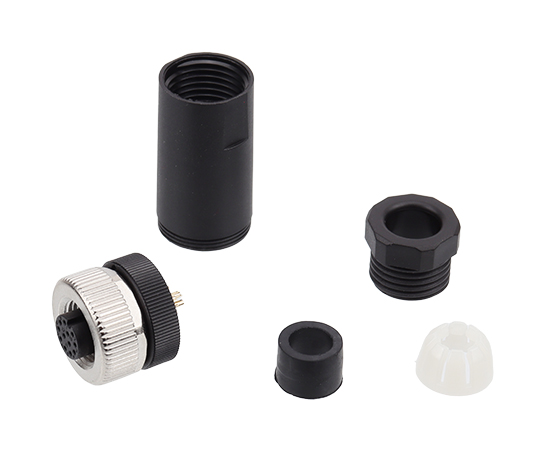

M12直式孔型塑胶插头 焊线式
| 产品名称 | 芯数 | 出线尺寸-PG7 | 出线尺寸-PG9 | 3D下载 | 2D下载 |
| 直式孔型塑胶组装式插头 焊线式 | 2A | M12-S2A-PWAP7-BS | M12-S2A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 3A | M12-S3A-PWAP7-BS | M12-S3A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 4A | M12-S4A-PWAP7-BS | M12-S4A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 4D | M12-S4D-PWAP7-BS | M12-S4D-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 5A | M12-S5A-PWAP7-BS | M12-S5A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 5B | M12-S5B-PWAP7-BS | M12-S5B-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 6A | M12-S6A-PWAP7-BS | M12-S6A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 8A | M12-S8A-PWAP7-BS | M12-S8A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 12A | M12-S12A-PWAP7-BS | M12-S12A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 17A | M12-S17A-PWAP7-BS | M12-S17A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
机械参数
| 壳体材料： | 黄铜镀镍/锌合金度镍/PA+GF |
| 胶芯材料： | PA+GF/TPU |
| 密封材料： | 环氧树脂/橡胶 |
| 插针材料： | 磷铜镀金/黄铜 |
| 成型材料： | TPU/PVC |
| 绝缘阻抗： | ≥100 MΩ |
| 接触阻抗： | ≤5 mΩ |
| 插拔次数： | ≥500 次 |
| 适用温度： | -25℃ ~ +80℃ |
| 防护等级： | IP65/IP67 |
| 执行标准： | IEC 61076-2-101 |

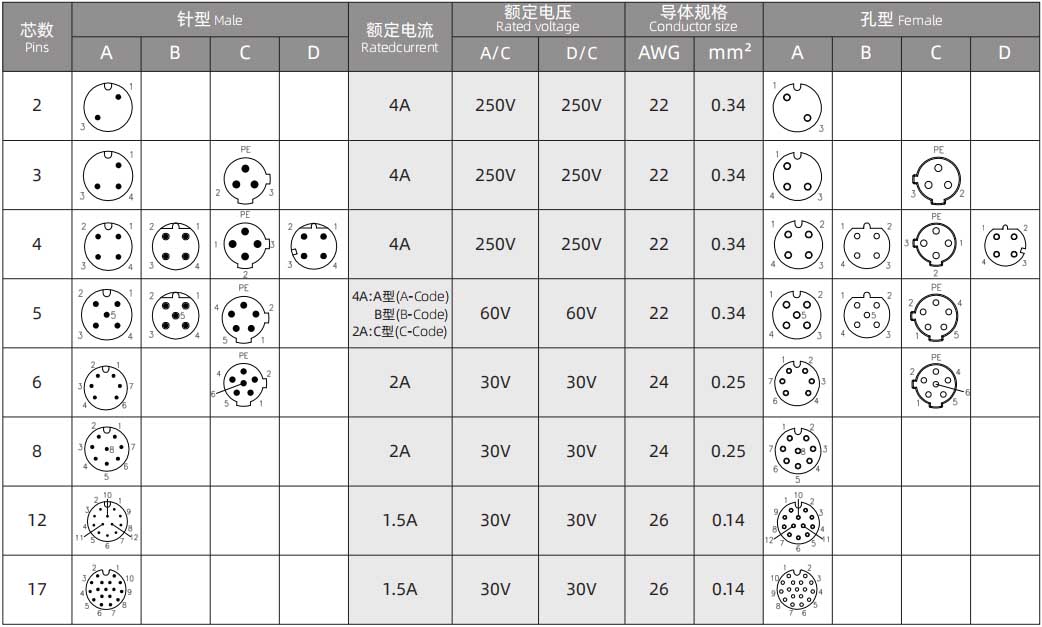

电气参数
| 产品名称 | 芯数 | 出线尺寸-PG7 | 出线尺寸-PG9 | 3D下载 | 2D下载 |
| 直式孔型塑胶组装式插头 焊线式 | 2A | M12-S2A-PWAP7-BS | M12-S2A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 3A | M12-S3A-PWAP7-BS | M12-S3A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 4A | M12-S4A-PWAP7-BS | M12-S4A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 4D | M12-S4D-PWAP7-BS | M12-S4D-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 5A | M12-S5A-PWAP7-BS | M12-S5A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 5B | M12-S5B-PWAP7-BS | M12-S5B-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 6A | M12-S6A-PWAP7-BS | M12-S6A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 8A | M12-S8A-PWAP7-BS | M12-S8A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 12A | M12-S12A-PWAP7-BS | M12-S12A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
| 直式孔型塑胶组装式插头 焊线式 | 17A | M12-S17A-PWAP7-BS | M12-S17A-PWAP9-BS | PG7/PG9 | PG7/PG9 |
尺寸图
接线定义
