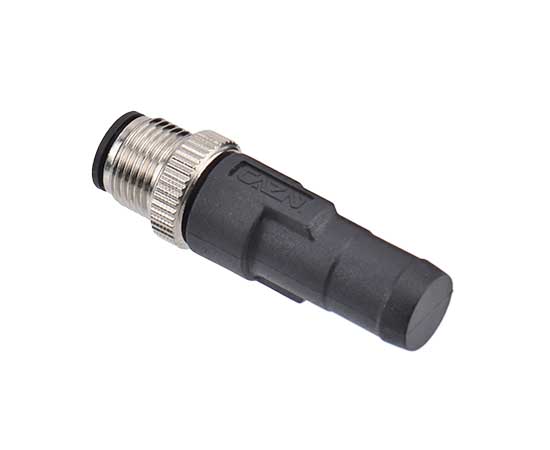

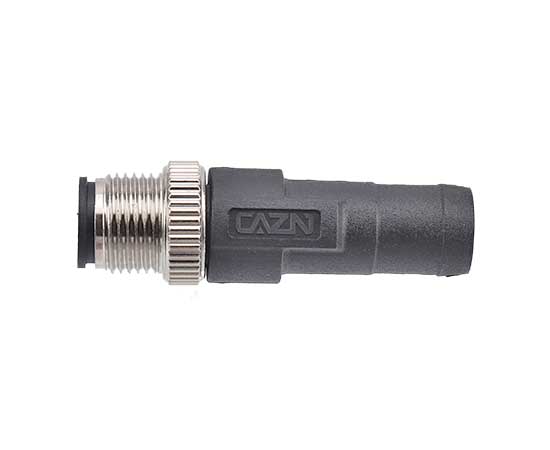

M12终端电阻针型插头 120Ω
| 产品名称 | 芯数 | 产品型号-阻抗:120Ω | 3D下载 | 2D下载 |
| M12终端电阻针型插头(120Ω) | 2A | M12-P2A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 3A | M12-P3A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 4A | M12-P4A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 5A | M12-P5A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 6A | M12-P6A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 8A | M12-P8A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 12A | M12-P12A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 17A | M12-P17A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 5B | M12-P5B-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 3C | M12-P3C-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 4C | M12-P4C-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 5C | M12-P5C-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 6C | M12-P6C-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 4D | M12-P4D-MWO-120OHM |
*如需要选择其他阻抗等级，请咨询客服。
机械参数
| 壳体材料： | 黄铜镀镍/锌合金度镍/PA+GF |
| 胶芯材料： | PA+GF/TPU |
| 密封材料： | 环氧树脂/橡胶 |
| 插针材料： | 磷铜镀金/黄铜 |
| 成型材料： | TPU/PVC |
| 绝缘阻抗： | ≥100 MΩ |
| 接触阻抗： | ≤5 mΩ |
| 插拔次数： | ≥500 次 |
| 适用温度： | -25℃ ~ +80℃ |
| 防护等级： | IP65/IP67 |
| 执行标准： | IEC 61076-2-101 |

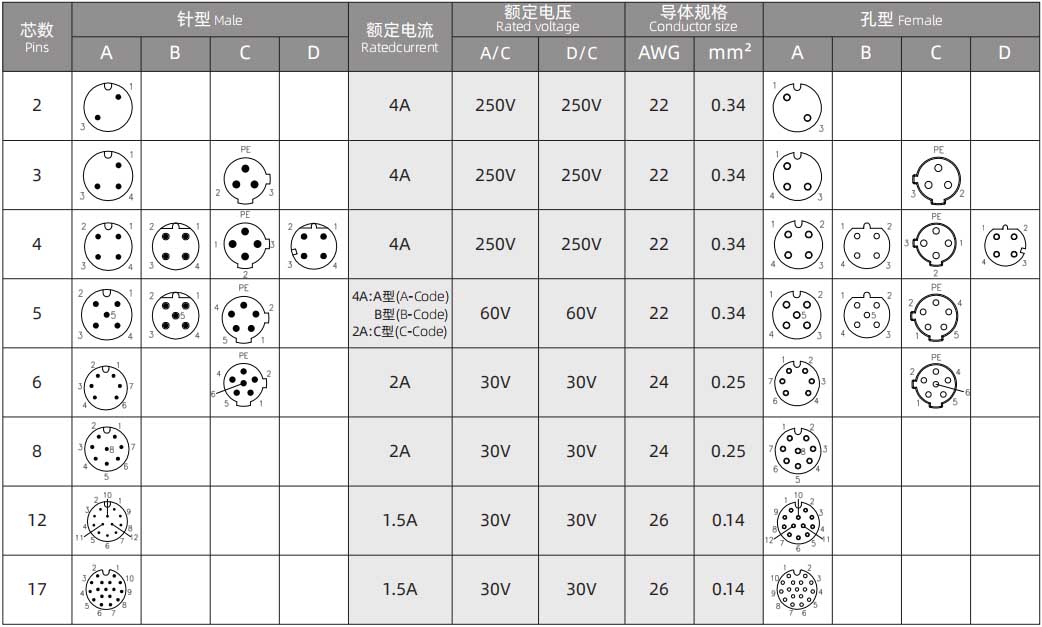

电气参数
| 产品名称 | 芯数 | 产品型号-阻抗:120Ω | 3D下载 | 2D下载 |
| M12终端电阻针型插头(120Ω) | 2A | M12-P2A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 3A | M12-P3A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 4A | M12-P4A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 5A | M12-P5A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 6A | M12-P6A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 8A | M12-P8A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 12A | M12-P12A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 17A | M12-P17A-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 5B | M12-P5B-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 3C | M12-P3C-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 4C | M12-P4C-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 5C | M12-P5C-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 6C | M12-P6C-MWO-120OHM | ||
| M12终端电阻针型插头(120Ω) | 4D | M12-P4D-MWO-120OHM |
*如需要选择其他阻抗等级，请咨询客服。

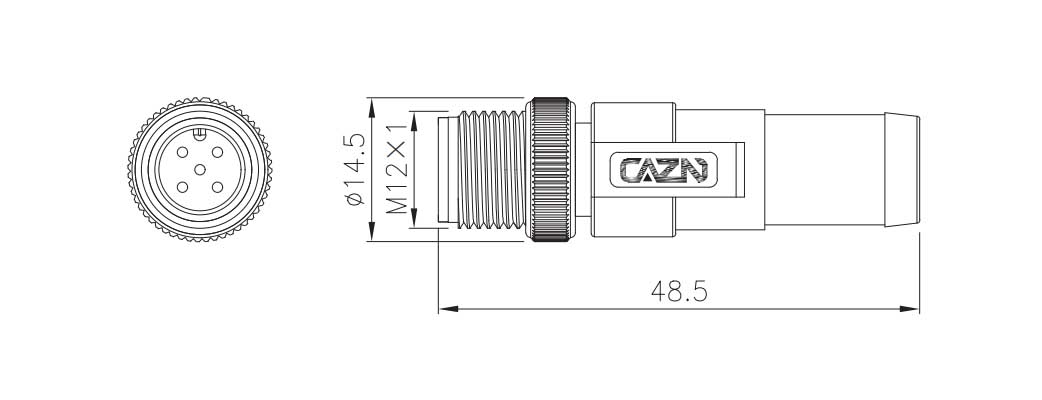

尺寸图

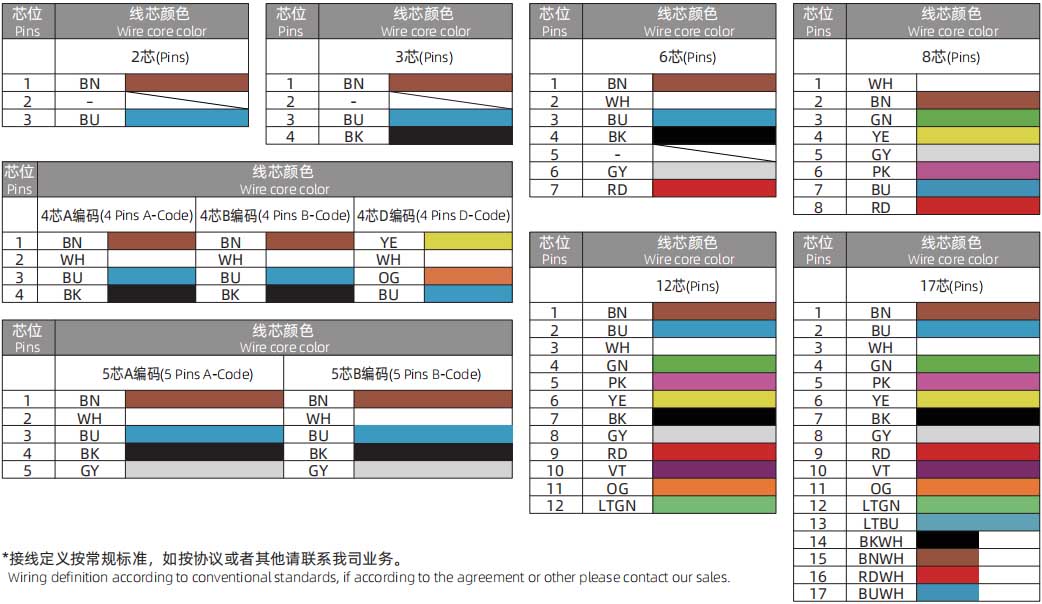

接线定义
