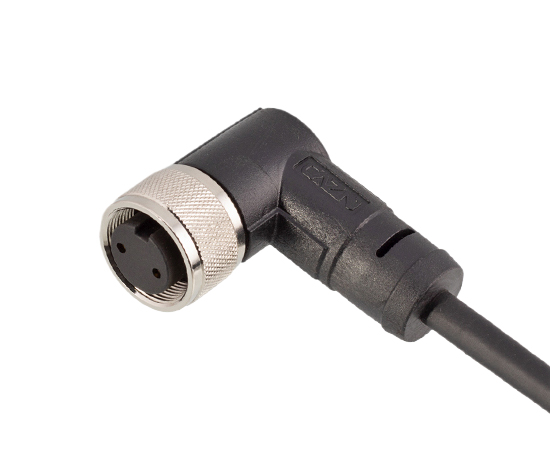

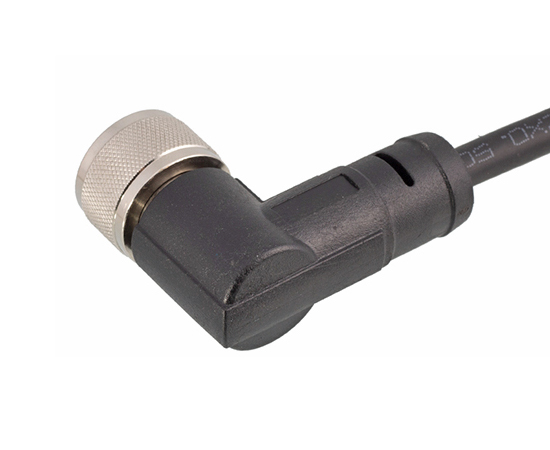

M16弯式孔型成型插头
| 产品名称 | 产品型号(带屏蔽) | 产品型号(非屏蔽) | 芯数 | 3D下载 | 2D下载 |
| M16弯式孔型成型插头-2芯-xx米-PVC线材 | M16-S2-MWD-xxPV-S | M16-S2-MWD-xxPV | 2 |
|
|
| M16弯式孔型成型插头-3芯-xx米-PVC线材 | M16-S3-MWD-xxPV-S | M16-S3-MWD-xxPV | 3 |
|
|
| M16弯式孔型成型插头-4芯-xx米-PVC线材 | M16-S4-MWD-xxPV-S | M16-S4-MWD-xxPV | 4 |
|
|
| M16弯式孔型成型插头-5芯-xx米-PVC线材 | M16-S5-MWD-xxPV-S | M16-S5-MWD-xxPV | 5 |
|
|
| M16弯式孔型成型插头-6芯-xx米-PVC线材 | M16-S6-MWD-xxPV-S | M16-S6-MWD-xxPV | 6 |
|
|
| M16弯式孔型成型插头-7芯-xx米-PVC线材 | M16-S7-MWD-xxPV-S | M16-S7-MWD-xxPV | 7 |
|
|
| M16弯式孔型成型插头-8芯-xx米-PVC线材 | M16-S8-MWD-xxPV-S | M16-S8-MWD-xxPV | 8 |
|
|
| M16弯式孔型成型插头-12芯-xx米-PVC线材 | M16-S12-MWD-xxPV-S | M16-S12-MWD-xxPV | 12 |
|
|
| M16弯式孔型成型插头-14芯-xx米-PVC线材 | M16-S14-MWD-xxPV-S | M16-S14-MWD-xxPV | 14 |
|
|
| M16弯式孔型成型插头-16芯-xx米-PVC线材 | M16-S16-MWD-xxPV-S | M16-S16-MWD-xxPV | 16 |
|
|
| M16弯式孔型成型插头-19芯-xx米-PVC线材 | M16-S19-MWD-xxPV-S | M16-S19-MWD-xxPV | 19 |
|
|
| M16弯式孔型成型插头-24芯-xx米-PVC线材 | M16-S24-MWD-xxPV-S | M16-S24-MWD-xxPV | 24 |
|
|
| M16弯式孔型成型插头-5芯A口-xx米-PVC线材 | M16-S5A-MWD-xxPV-S | M16-S5A-MWD-xxPV | 5A |
|
|
| M16弯式孔型成型插头-7芯A口-xx米-PVC线材 | M16-S7A-MWD-xxPV-S | M16-S7A-MWD-xxPV | 7A |
|
|
| M16弯式孔型成型插头-14芯A口-xx米-PVC线材 | M16-S14A-MWD-xxPV-S | M16-S14A-MWD-xxPV | 14A |
|
|
*如需要选择其他线材，请咨询客服
机械参数
| 壳体材料： | 黄铜/锌合金度镍/黄铜镀镍 |
| 胶芯材料： | PA66 |
| 密封材料： | 环氧树脂/橡胶 |
| 插针材料： | 黄铜/磷铜镀金 |
| 成型材料： | TPU/PVC |
| 接线范围： | PG7:4~6mm; PG9:6~8mm |
| 接触阻抗： | ≤5 mΩ |
| 插拔次数： | ≥500 次 |
| 适用温度： | -25℃ ~ +80℃ |
| 防护等级： | IP65/IP67 |
| 执行标准： | IEC 61076-2-106-2012 |

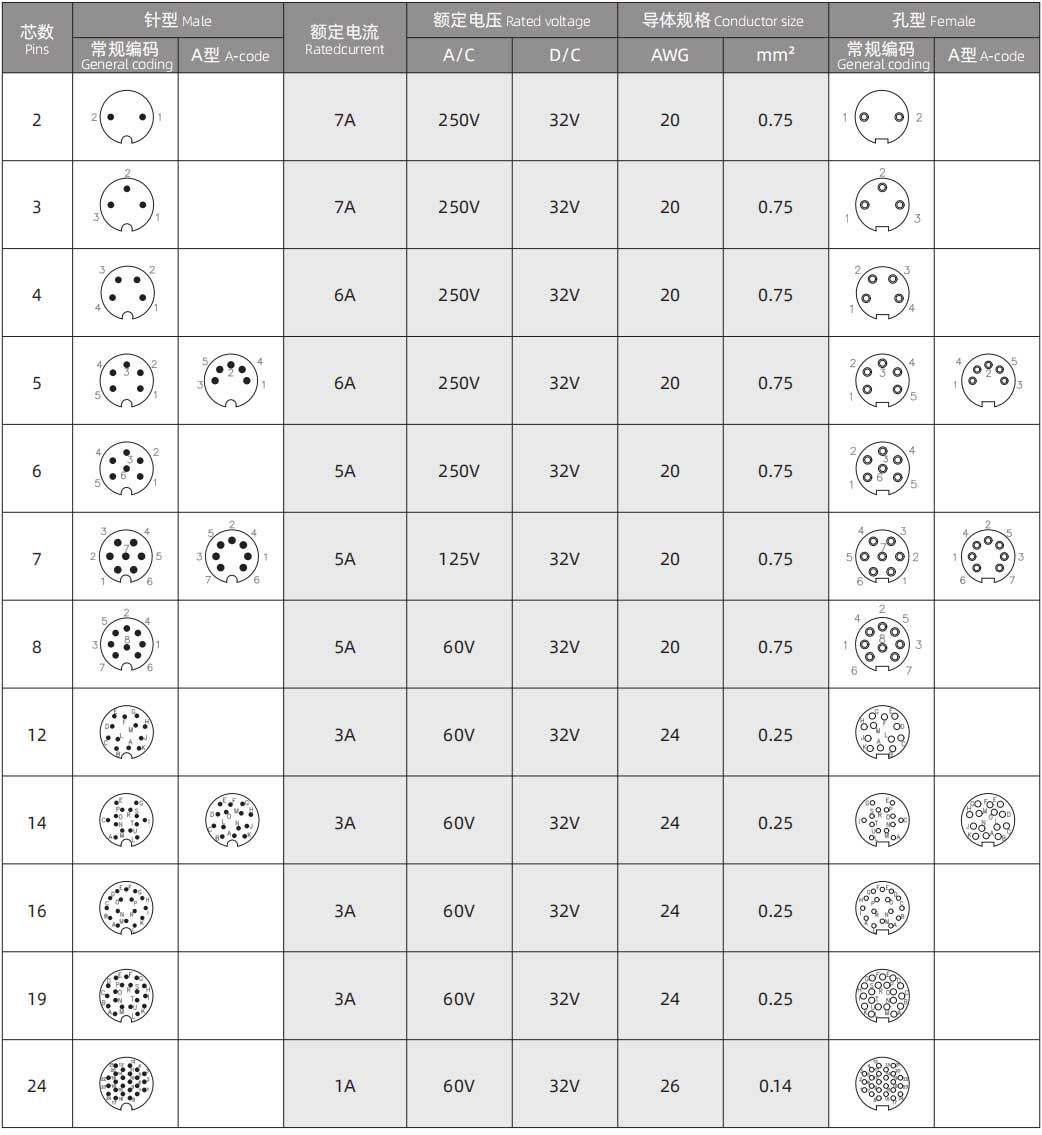

电气参数
| 产品名称 | 产品型号(带屏蔽) | 产品型号(非屏蔽) | 芯数 | 3D下载 | 2D下载 |
| M16弯式孔型成型插头-2芯-xx米-PVC线材 | M16-S2-MWD-xxPV-S | M16-S2-MWD-xxPV | 2 |
|
|
| M16弯式孔型成型插头-3芯-xx米-PVC线材 | M16-S3-MWD-xxPV-S | M16-S3-MWD-xxPV | 3 |
|
|
| M16弯式孔型成型插头-4芯-xx米-PVC线材 | M16-S4-MWD-xxPV-S | M16-S4-MWD-xxPV | 4 |
|
|
| M16弯式孔型成型插头-5芯-xx米-PVC线材 | M16-S5-MWD-xxPV-S | M16-S5-MWD-xxPV | 5 |
|
|
| M16弯式孔型成型插头-6芯-xx米-PVC线材 | M16-S6-MWD-xxPV-S | M16-S6-MWD-xxPV | 6 |
|
|
| M16弯式孔型成型插头-7芯-xx米-PVC线材 | M16-S7-MWD-xxPV-S | M16-S7-MWD-xxPV | 7 |
|
|
| M16弯式孔型成型插头-8芯-xx米-PVC线材 | M16-S8-MWD-xxPV-S | M16-S8-MWD-xxPV | 8 |
|
|
| M16弯式孔型成型插头-12芯-xx米-PVC线材 | M16-S12-MWD-xxPV-S | M16-S12-MWD-xxPV | 12 |
|
|
| M16弯式孔型成型插头-14芯-xx米-PVC线材 | M16-S14-MWD-xxPV-S | M16-S14-MWD-xxPV | 14 |
|
|
| M16弯式孔型成型插头-16芯-xx米-PVC线材 | M16-S16-MWD-xxPV-S | M16-S16-MWD-xxPV | 16 |
|
|
| M16弯式孔型成型插头-19芯-xx米-PVC线材 | M16-S19-MWD-xxPV-S | M16-S19-MWD-xxPV | 19 |
|
|
| M16弯式孔型成型插头-24芯-xx米-PVC线材 | M16-S24-MWD-xxPV-S | M16-S24-MWD-xxPV | 24 |
|
|
| M16弯式孔型成型插头-5芯A口-xx米-PVC线材 | M16-S5A-MWD-xxPV-S | M16-S5A-MWD-xxPV | 5A |
|
|
| M16弯式孔型成型插头-7芯A口-xx米-PVC线材 | M16-S7A-MWD-xxPV-S | M16-S7A-MWD-xxPV | 7A |
|
|
| M16弯式孔型成型插头-14芯A口-xx米-PVC线材 | M16-S14A-MWD-xxPV-S | M16-S14A-MWD-xxPV | 14A |
|
|
*如需要选择其他线材，请咨询客服

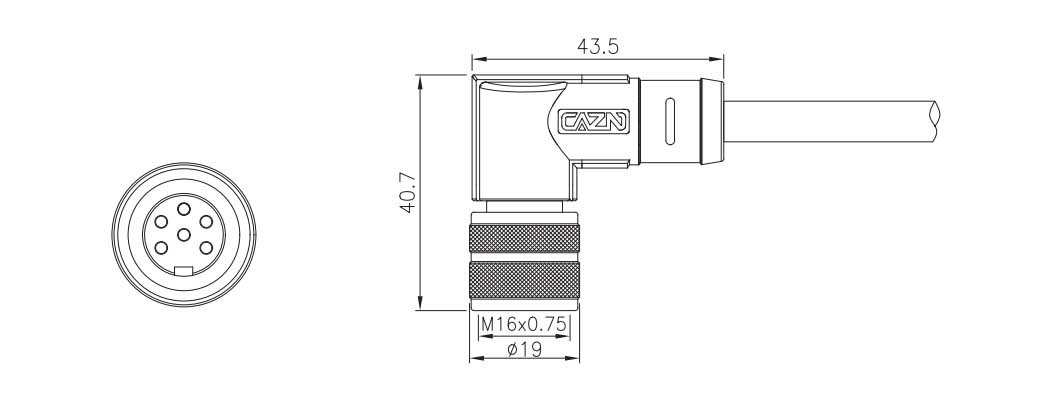

尺寸图
